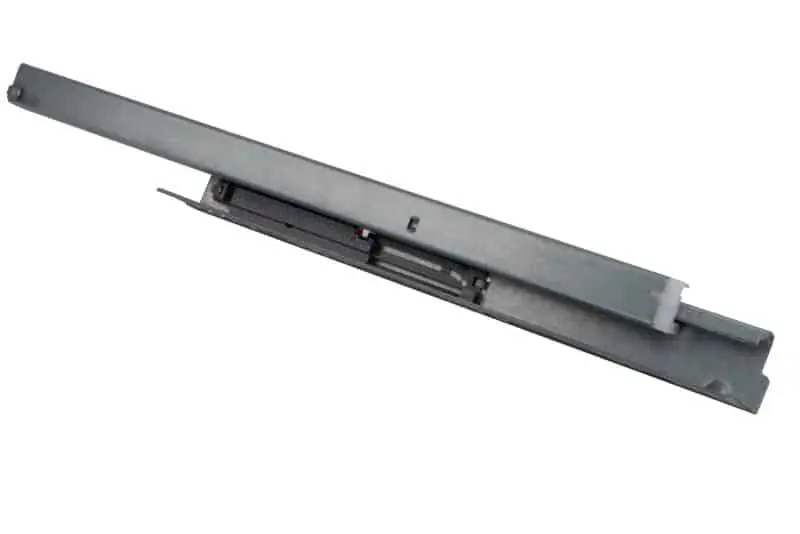

CGS Full-Extension Undermount Frameless Slides (Front Bracket not included)

Specifications

Type: Concealed undermount drawer slide set
Cabinet Type: Frameless (European style) cabinets
Extension: Full extension for complete drawer access
Closing Mechanism: Cushion-close damper (depending on model)
Material: Heavy-duty steel with polymer components
Finish: Zinc or nickel-plated for corrosion resistance
Load Capacity: Standard 40 kg (88 lbs)
Lengths Available: Typically 12″ to 24″ (305 mm – 610 mm)
Adjustment: Height and side-to-side adjustments (via locking devices; 6-way adjust available with specific models)
Front Bracket: Not included (sold separately, required for certain applications)
Cycle Testing: Exceeds 50,000 open/close operations

Full Extension – Provides complete visibility and access to drawer interiors.
Concealed Undermount Design – Hidden slides enhance cabinet aesthetics.
Smooth Glide Action – Premium rollers deliver consistent performance.
Durable Steel Construction – Supports heavy loads with long-lasting reliability.
Cushion-Close Technology – Available on cushion-close models to prevent slamming.
Frameless Cabinet Compatibility – Designed specifically for Euro-style cabinets.
Optional Front Bracket – Allows flexible installation in specialized setups.
Professional Finish – Sleek, high-quality hardware for residential and commercial cabinetry.
Tool-Free Removal (with locking devices) – Simplifies maintenance and adjustments.

Kitchen Cabinets – Perfect for drawers requiring full access and hidden hardware.
Bathroom Vanities – Reliable drawer slides for moisture-prone environments.
Closets & Wardrobes – Smooth glide storage for clothing and accessories.
Office Furniture – Premium undermount slides for desks and filing cabinets.
Utility & Laundry Cabinets – Durable enough for heavy, daily-use storage.
Retail & Commercial Fixtures – Enhances durability and presentation in high-traffic environments.
Hospitality Projects – Hotels, condos, and apartments needing long-lasting hardware.
Custom Cabinetry & Millwork – Ideal for premium builds with concealed drawer systems.
RV & Mobile Home Cabinetry – Provides smooth, secure drawer action in compact spaces.

Code	Description	Units	Brands	Mounting Type	Open/Closing Method	Range of Extension	Drawer Thickness	Certifications	Drawer Adjustments	Load Rating	Lengths Available
280-232	250mm, Full-Extension, Push-to-Open, Frameless Undermount (Front bracket not included)	Pair	CGS	Frameless	Push-To-Open	Full Extension	5/8″ (16mm)	KCMA	2-Way, 6-Way	40 kg (88 lbs)	250mm (10″)
280-233	300mm, Full-Extension, Push-to-Open, Frameless Undermount (Front bracket not included)	Pair	CGS	Frameless	Push-To-Open	Full Extension	5/8″ (16mm)	KCMA	2-Way, 6-Way	40 kg (88 lbs)	300mm (12″)
280-234	350mm, Full-Extension, Push-to-Open, Frameless Undermount (Front bracket not included)	Pair	CGS	Frameless	Push-To-Open	Full Extension	5/8″ (16mm)	KCMA	2-Way, 6-Way	40 kg (88 lbs)	350mm (14″)
280-235	400mm, Full-Extension, Push-to-Open, Frameless Undermount (Front bracket not included)	Pair	CGS	Frameless	Push-To-Open	Full Extension	5/8″ (16mm)	KCMA	2-Way, 6-Way	40 kg (88 lbs)	400mm (16″)
280-236	450mm, Full-Extension, Push-to-Open, Frameless Undermount (Front bracket not included)	Pair	CGS	Frameless	Push-To-Open	Full Extension	5/8″ (16mm)	KCMA	2-Way, 6-Way	40 kg (88 lbs)	450mm (18″)
280-237	500mm, Full-Extension, Push-to-Open, Frameless Undermount (Front bracket not included)	Pair	CGS	Frameless	Push-To-Open	Full Extension	5/8″ (16mm)	KCMA	2-Way, 6-Way	40 kg (88 lbs)	500mm (20″)
280-238	550mm, Full-Extension, Push-to-Open, Frameless Undermount (Front bracket not included)	Pair	CGS	Frameless	Push-To-Open	Full Extension	5/8″ (16mm)	KCMA	2-Way, 6-Way	40 kg (88 lbs)	550mm(22″)
